Yealink T5x Series User Instructions

Yealink T5x Series User Instructions

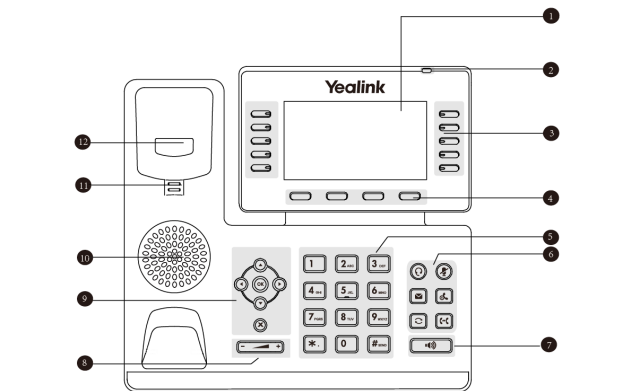

No
Item
Description
1
Phone Screen
Shows a screen with backlight that enables you to view menus and data.
2
Power LED Indicator
Indicates call status, message status and phone’s system status.
3
Line Keys
Access your phone lines and features.
4
Soft Keys
Access the function displayed on the screen above the soft keys. The soft keys change depending on what you are doing at the time.
5
Keypad Keys
Allow you to enter numbers, letters, and special characters. If a menu item has an index number, you can use the keypad keys to select the item.
6
HEADSET Key
Toggles the headset mode on or off. The LED indicator glows green when the headset mode is activated.

MUTE Key
Toggles the microphone on or off. The LED indicator glows green when the mute feature is activated.

MESSAGE Key
Accesses your voice messages.

HOLD Key
Places a call on hold or resumes a held call.

REDIAL Key
Redials a previously dialed number.

TRANSFER Key
Transfers a call.
7
Speakerphone Key
Toggles the speakerphone (hands-free) mode or not. The LED indicator glows green when the speakerphone is activated.
8
Volume Key
Adjusts the volume of handset, headset and speaker.
9
Navigation Keys
• Scroll through information or options displayed on the screen.
• Access History and Directory respectively.

OK Key
Confirms actions or answers incoming calls.

Cancel Key
Cancels actions or rejects incoming calls.
10
Speaker
Provides hands-free (speakerphone) audio output.
11
Reversible Tab
Secures the handset in the handset cradle when the phone is mounted vertically.
12
Hookswitch
Connects or disconnects the phone from the phone line. The hookswitch is automatically activated when a user lifts the handset from the cradle to get a dial tone.
